When more than one material is part of a coating application, one name delivers consistent performance. SCS Multi-Dispense gives you four dispense modules to make the coating application and development process even more efficient.

Product Information

The SCS Multi-Dispense enables you to dispense liquid materials to an SCS Spin Coater from up to four different dispense modules (three with the use of N2). Materials can include coatings, solvents and cleaning solutions, in addition to the N2, which can be used for blow-off or drying. By including the SCS Multi-Dispense system, users can eliminate the need for time-consuming cleaning and change-over, while providing the accurate and controlled coatings capabilities backed by SCS and our years of coatings expertise.

Specifications

Control Unit

Power
Powered by SCS Spin Coater
Controls
Operated by SCS Spin Coater
Module Capacity
4
Nitrogen supply
30 psi/2.1 bar, >1 cfm/0.472 L/s
Weight
Weight: 5 lb/2.3 kg

Dispense Module – Stainless Steel

Capacity
1 qt (0.95 L) - per module
Container type
Stainless steel
Control type
Pneumatically controlled material valve
Maximum pressure
15 psi/1.034 bar
Needle (valve)
Various sizes available
Port
Luer lock needle port

Dispense Module - HDPE

Capacity
2.1 qt (2 L)
Container type
HDPE
Control type
Pneumatically controlled material valve
Maximum Pressure
5 psi/0.344 bar
Needle (valve)
Various sizes available
Port
Luer lock needle port

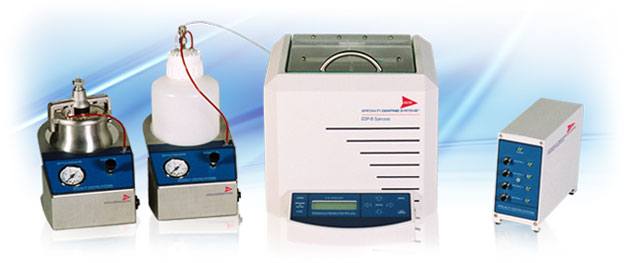

SCS G3 Spincoat and Multi-Dispense Systems

The SCS Multi-Dispense enables users to dispense liquid materials to an SCS Spin Coater from up to four different dispense modules.
