Dip Coating Systems
P-3201

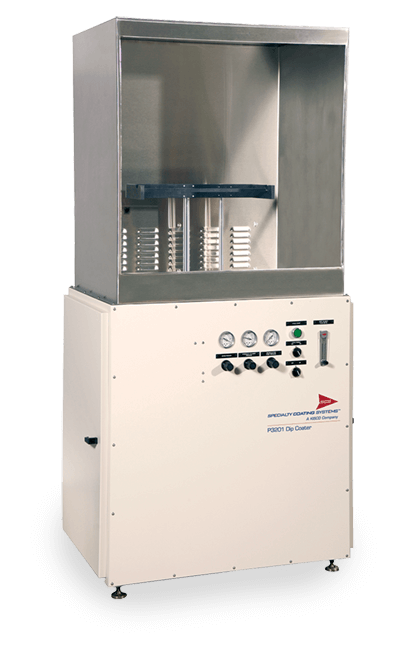

The SCS P-3201 Dip Coating System offers performance and reliability to manufacturers who need in-house dip coating capabilities.
Product Information
The SCS P-3201 Dip Coat System is a free-standing precision dip coater designed to coat circuit boards in non-automated production settings. With this system, you can effectively and efficiently apply a range of coatings, including urethane, epoxy, silicone and acrylic coatings, as well as photoresists and solder mask materials. This system includes a stationary 19″ x 25″ tank and an air-over-oil cylinder mechanism that lets you safely move circuit assemblies into and out of the coating to attain the specified thickness.
System Features
- Powered by compressed air cylinder for smooth, explosion-proof operation
- Adjustable immersion and lift speeds, 1-24 inches/minute
- Dip assembly supports multiple boards per dip cycle
- Removable tank for fast, easy coating changes
- Independently adjustable immersion and withdrawal rates
- Stainless steel tank cover minimizes vapor loss
- Accurate immersion control eliminates masking above dip line
- Meets National Fire Class 1, Group D explosion-proof standards for Division 1 environment
Optional Features
- Circulation pump and overflow dam
- Stainless steel piping for circulation pump in lieu of brass piping
- 225 micron coating filter (circulation pump option must be purchased with this option)
- Dip dwell (0-30 seconds)
- Variable extension height (dip dwell option must be purchased with this option)
- Tank air blanket and flow meter
- PTFE coated tank
- Exhaust hood enclosure
Specifications
Unit size
38 in. L x 25.75 in. W x 39 in. H (96.5 cm x 65.41 cm x 99 cm)
Tank size
25 in. L x 7 in. W x 19 in. D (68.6 cm x 17.78 cm x 48.3 cm)
Tank drain
1/2 in. (1.27 cm)
Immersion capacity
up to 13 in. (33.0 cm), with 6 in. (15.2 cm) freeboard
Immersion rate
1 to 24 in./min (2.54 to 61 cm/min.)
Withdrawal rate
1 to 24 in./min (2.54 to 61 cm/min.)
Dip Depth
Adjustable by sensor position
Actuation
Compressed air at 15 cfm/80 psi (25.5 m3/hr./5.5 bars), oil and moisture free
Exhaust
200 cfm (340 m3/hr)
SCS Dip Coating Systems
The SCS P3201 is a precision dip coating system used to coat printed circuit boards in a production setting. This system can apply urethane, epoxy, silicone and acrylic coatings, as well as photoresists and solder mask materials.
