PrecisionCure TC (IR)

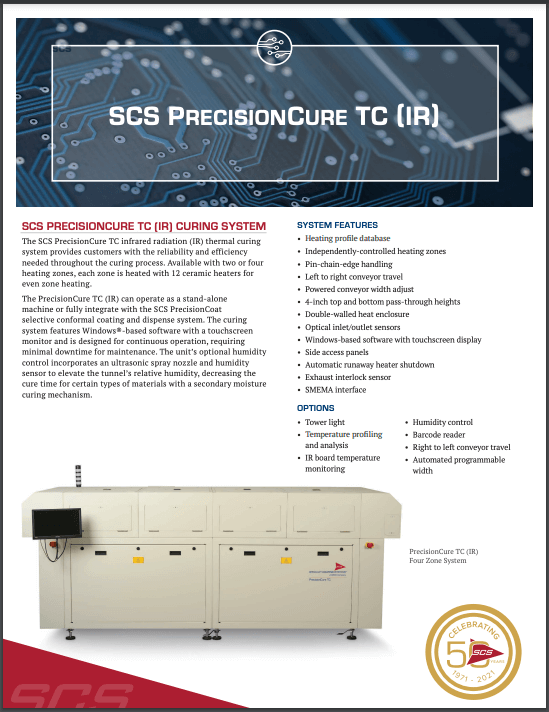

The SCS PrecisionCure TC infrared radiation (IR) thermal curing system provides customers with the reliability and efficiency needed throughout the curing process.
Product Information

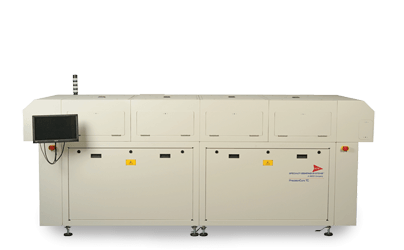

The SCS PrecisionCure TC infrared radiation (IR) thermal curing system is available with two or four heating zones. Each zone is heated with 12 ceramic heaters for even heating. The curing system can operate as a stand-alone machine or fully integrate with the SCS PrecisionCoat selective conformal coating and dispense system.
The SCS PrecisionCure TC (IR) features Windows®-based software with a touchscreen monitor and is designed for continuous operation, requiring minimal downtime for maintenance. The unit’s optional humidity control incorporates an ultrasonic spray nozzle and humidity sensor to elevate the tunnel’s relative humidity, decreasing the cure time for certain types of materials with a secondary moisture curing mechanism.
System Features
- Heating profile database
- Independently-controlled heating zones
- Pin-chain-edge handling
- Left to right conveyor travel
- Powered conveyor width adjust
- 4-inch top and bottom pass-through heights
- Double-walled heat enclosure
- Optical inlet/outlet sensors
- Windows-based software with touchscreen display
- Side access panels
- Automatic runaway heater shutdown
- Exhaust interlock sensor
- SMEMA interface
Options
- Tower light
- Temperature profiling and analysis
- IR board temperature monitoring
- Humidity control
- Barcode reader
- Right to left conveyor travel
- Automated programmable width
Specifications
Heat source
Ceramic infrared heating units
Ceramic heater temperature
Maximum temperature: 275°C / 525°F
Electrical options
Two Zone System: 208, 220, 230, 420, 440, 460 Vac, 3Ø, 50/60 Hz, 7 KVA
Four Zone System: 208, 220, 230, 420, 440, 460 Vac, 3Ø, 50/60 Hz, 13 KVA
Four Zone System: 208, 220, 230, 420, 440, 460 Vac, 3Ø, 50/60 Hz, 13 KVA
Exhaust requirements
350 CFM / 155 m3/hr at 0.2 in water column
Conveyor type
Pin-chain-edge handling with 0.375 in / 0.95 cm pin chain
Conveyor speed
0.5 to 120 in/min / 1 to 300 cm/min
Substrate width
2.5 to 20 in / 6.5 to 50.8 cm
Substrate length
Minimum length: 4 in / 10.2 cm
Drive system
Direct-drive stepper motor
Tunnel clearance
4 in / 10 cm (top and bottom)
System Dimensions (W x D x H)
74.5 x 39.6 x 50 in / 189.2 x 100.7 x 119.3 cm
Four Zone System: 122.5 x 39.6 x 50 in / 311.2 x 100.7 x 119.3 cm
Four Zone System: 122.5 x 39.6 x 50 in / 311.2 x 100.7 x 119.3 cm
Weight, skidded
750 lb / 340 kg
Four Zone System: 1,100 lb / 499 kg
Four Zone System: 1,100 lb / 499 kg
