SCS Hot Plate 1000-1: It's built with the features needed to make tabletop curing easier and more efficient.

Product Information

The SCS Hot Plate 1000-1 is precision electronic hot plate that provides an extremely accurate means of producing even temperatures across a surface. It is designed to cure materials such as photo resist or epoxy, or any work that requires precise temperature.

Designed for both laboratory and production environments, the SCS Hot Plate 1000-1 provides sophisticated control capabilities to meet the most demanding application requirements — all in a compact and self-contained unit that is easy-to-use, simple-to-clean, and competitively priced.

System Features

  • Multifunction control panel
  • High visibility 4 digit LED display
  • Measurements in °C or °F
  • 1.0 or .01 digit resolution
  • User settable power limit
  • Temperatures from 50°C to 150°C (optional temperatures to 250°C)
  • Accurate to ±1% across working surface
  • Vacuum ports ensures intimate contact between substrate and hotplate
  • Substrate size from 10mm to 150mm (optional to 300mm)
  • P.I.D. Temperature Controller with digital readout (optional programmable unit available)
  • Performance monitors and diagnostics record and interpret behavior of unsupervised processes


110V or 240V at 2 amps
350 x 290 x 100mm

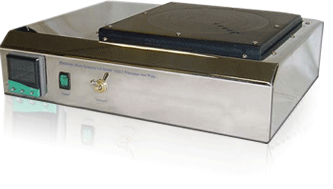

SCS Hot Plate

The SCS Hot Plate provides an accurate and even heating surface for laboratory applications.
