Precision UVC (UV Cure)
The SCS Precision UVC offers full-spectrum UV curing in perfect integration with the SCS PrecisionCoat.
Product Information
When materials require UV curing, manufacturers turn to the SCS Precision UVC as a reliable, robust staple in their production line. When mated with the SCS PrecisionCoat, components move from coating to curing automatically, with the UV cure process being controlled by proprietary software through the coating system. The Precision UVC can also be controlled by a computer, independent of a coater, for manufacturer’s convenience.
The Precision UVC has a full spectrum mercury UV source with three intensity settings and covers a cure zone 24 inches wide at an intensity of 300 W/in, making it ideal to cure a wide variety of materials, including inks, solder masks and other coatings.
Features
- Three power levels, from 125 W/in to 300 W/in
- 2–inch to 24–inch process width
- 4–inch top and bottom pass-through heights
- 24–inch pin chain conveyor (auto-width adjustment optional)
- SMEMA compatibility
Specifications
UV source
Tubular, full spectrum mercury lamp
Arc length
25 in / 63.5 cm
Input power
7,500 W at 300 W/in / 118 W/cm
Optics
Interfocused, air-cooled reflector module
UV flux
860 W/ft2 / 926 mW/cm2
UV path length
9.5 in / 24.13 cm in direction of conveyor travel
UV efficiency
UV radiation = 22% of lamp power
Conveyor type
Variable width, extended pin chain
Conveyor width
2 to 24 in / 5.08 to 61 cm
Drive system
2 to 20 f/min / 0.61 to 6.1 m/min
Substrate width
2 to 24 in / 5.08 to 61 cm
Maximum substrate height
4 in / 10.2 cm above and below pass line
Electrical
220 – 240 VAC, 50/60 Hz, 1Ø, 9.5 KW (alternate electrical configurations available)
Exhaust requirements
625 cfm / 1,062 m3/h
Dimensions (W x D x H)
95 x 46 x 62 in / 214 x 117 x 157 cm
Weight
700 lb / 318 kg

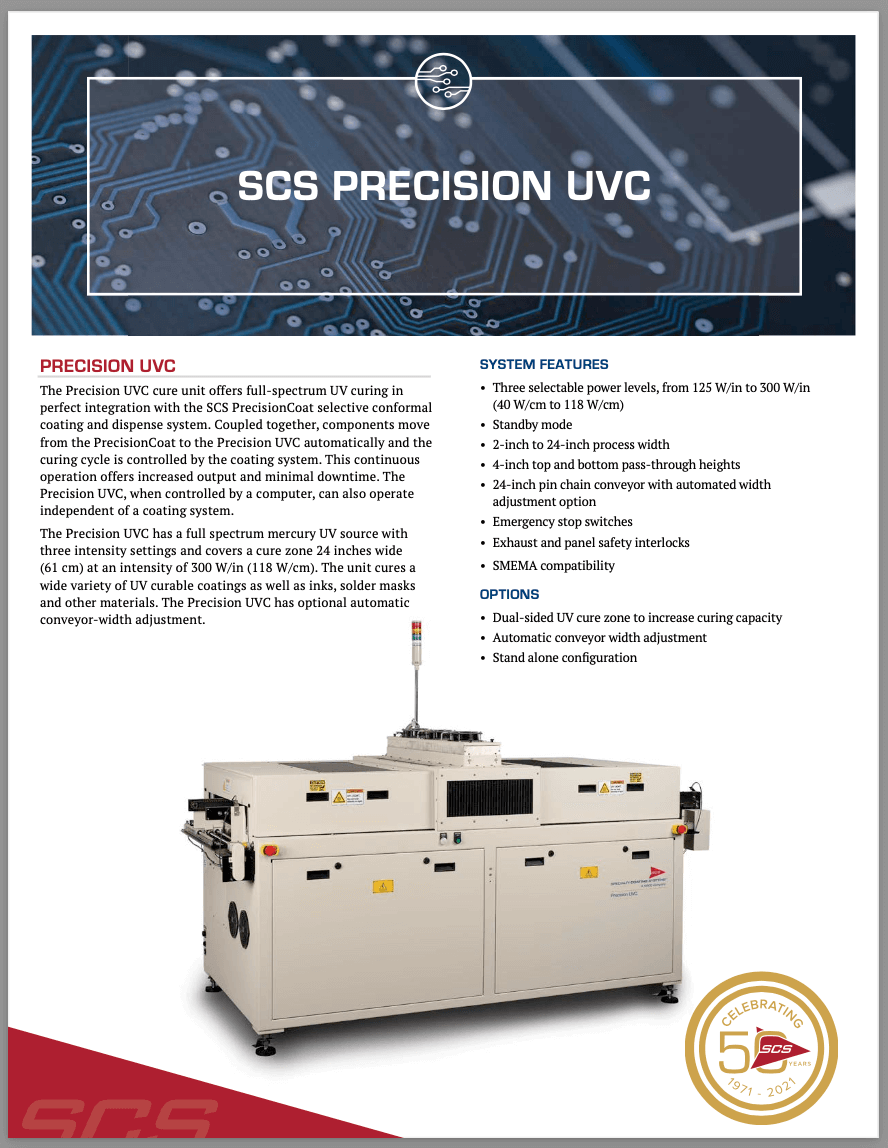

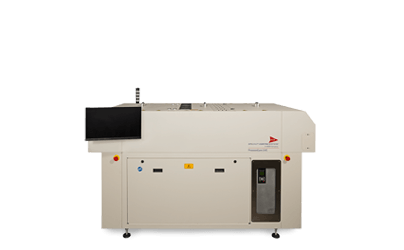

SCS Precision UVC
The SCS Precision UVC provides robust, reliable UV curing capabilities for any production line.
